Siemens 6EP1961-2BA00 SITOP Select 4-Channel Diagnosis Module, 24 VDC

Siemens 6EP1961-2BA00 SITOP Select 4-Channel Diagnosis Module, 24 VDC

$125.00

Availability: In stock

Qty:

Add to Wishlist

Be the first to review this product

Estimate Shipping Cost

Enter your destination to get a shipping estimate

* Country
Zip/Postal Code

Details

This listing is for a SITOP Select 4-channel diagnosis module; *Brand/Name: Siemens; *Model/Part #: 6EP1961-2BA00; *Description: SITOP Select 4-Channel Diagnosis Module> Rated input voltage: 24 V DC> Working voltage range: 22 V to 30 V DC> Connection threshold: Approx. 12 V> Max. input current: 40 A>/ Rated output voltage: 24 V DC, equivalent to input voltage> Typical voltage drop with 10 A per branch: 300 mV> Branch current setting range: 2 A to 10 A, set with potentiometer> Parallel connection of several branches in order to increase the power is not permitted> Typical current for disconnected and shortcircuited output: 20 mA> Switch-on delay: for all outputs alike, setting values: 0 ms, 24 ms, 100 ms>/ Degree of protection: IP20 acc. to EN 60529> Safety class: III acc. to IEC 536> Safety acc. to EN 50178 and EN 60950: SELV> Emitted interference: acc. to EN 61000-6-3> Noise immunity: acc. to EN 61000-6-2> Noise immunity: acc. to EN 61000-6-2> UL 60950, File E151273, Vol.1, Sec.11> Conformity statement EN 60079-15: ATEX94/9/EC Kat.3;Eex, nAC, IIC, T4 U> used but in "like new" condition.

s151-106 rg

Specifications

Brand	Siemens
Model	SITOP Select
MPN	6EP1961-2BA00
Country/Region of Manufacture	Austria

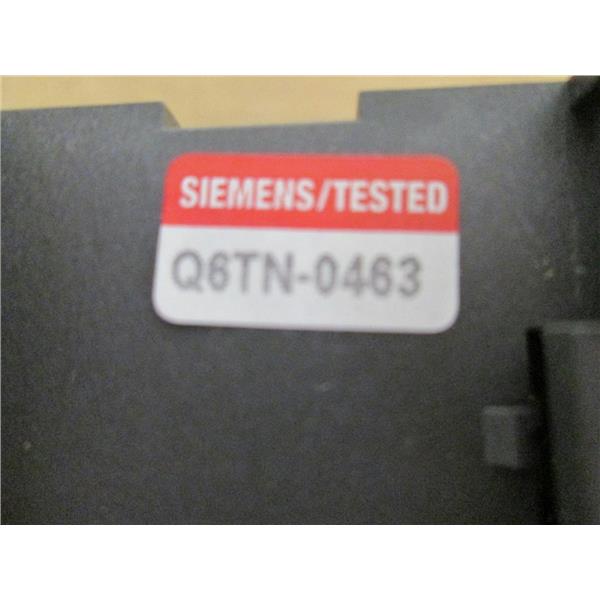

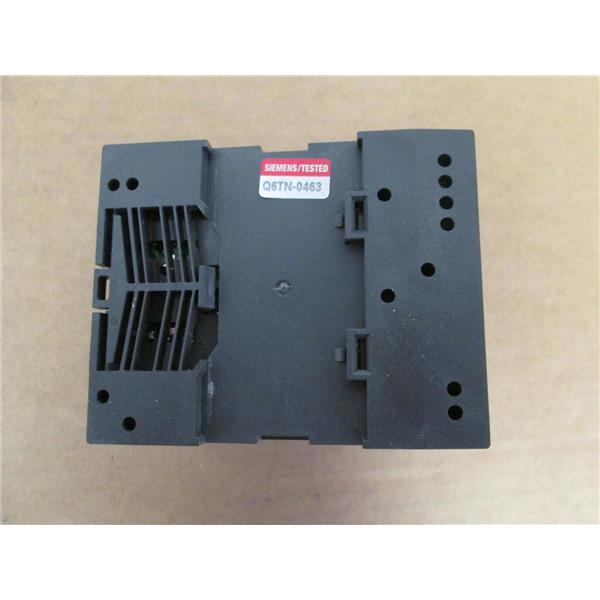

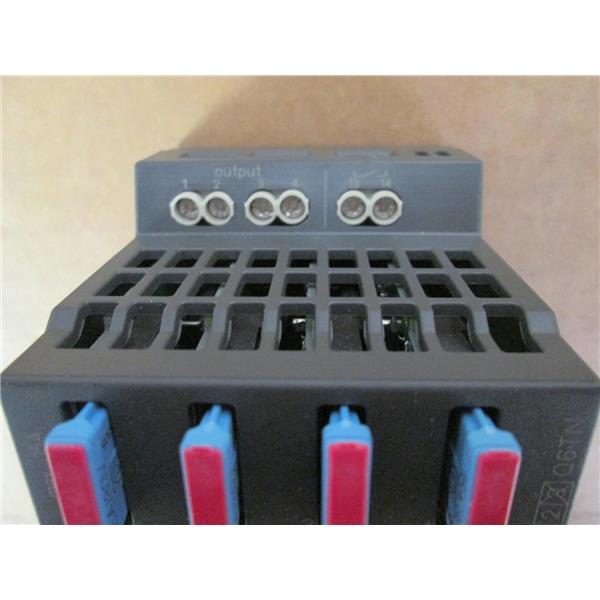

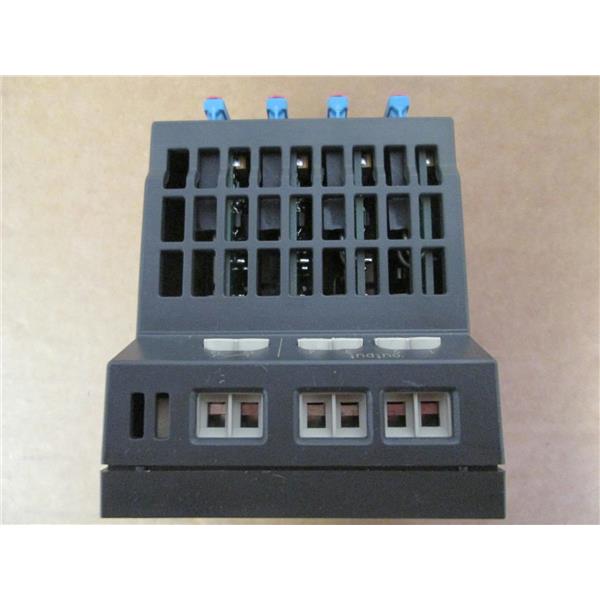

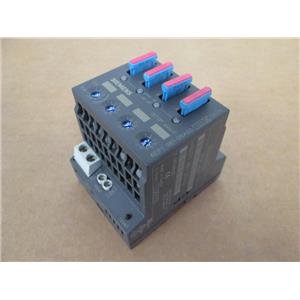

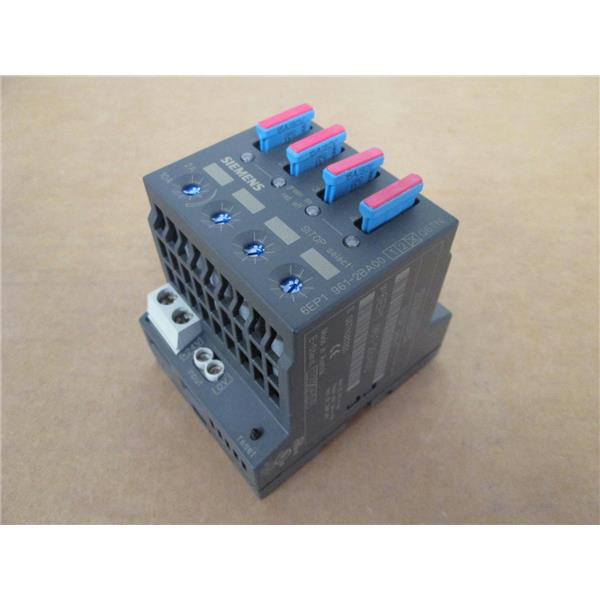

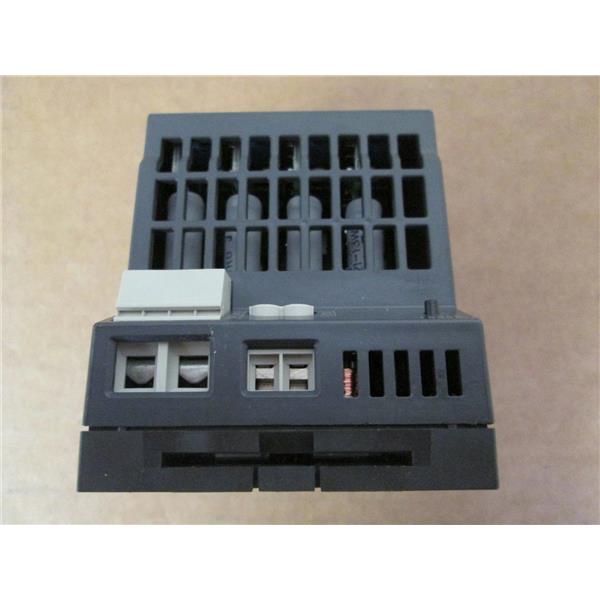

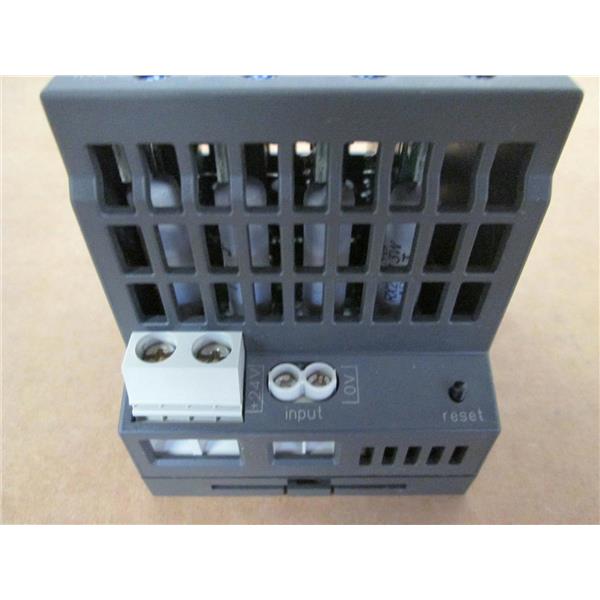

Condition Description	This item is used but comes from a working environment and is in "LIKE NEW" condition (SEE PICTURES).
