Bosch NWD495V0320P IP Flexidome Indoor Outdoor Vandal Proof Camera

$215.99

Availability: In stock

Estimate Shipping Cost

Enter your destination to get a shipping estimate

Details

Please Advised! This unit was inspected and was found to be USED and in good cosmetic condition. The outer casing show mild signs of normal use, and the protective lens discolored from use. The unit will be packaged in a plain brown box. The unit was removed from a working environment. The unit was tested mechanically and preformed well, unable to preform visional testing.

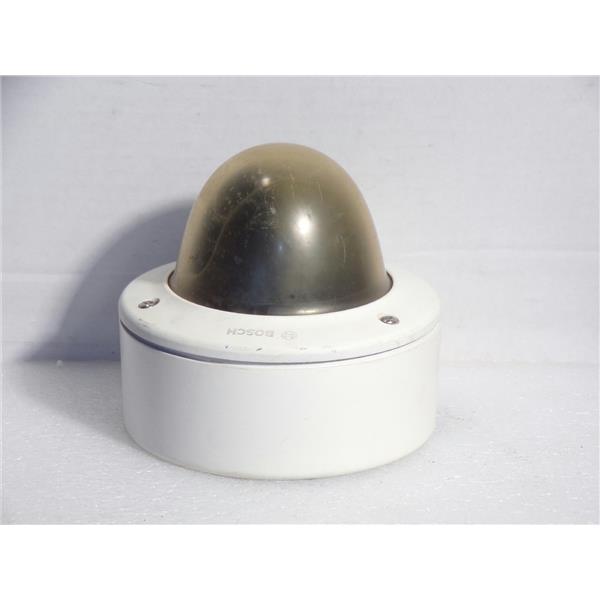

Bosch NWD 495V03 20P IP Flexidome Indoor Outdoor Vandal Proof Camera w/ Outer Lens

Specifications:

  • Input voltage - +11 to +36 VDC (750 mA). 12 to 28 VAC, 45/65 Hz* (850 mA). PoE, IEEE 802.3af
  • Power consumption - 10.5 VA (max)
  • Connector - 3-pole push-in
  • Video standards - MPEG-4; JPEG
  • GOP structure - I, IP
  • Data rate - 9.6 Kbps to 6 Mbps (const. and variable)
  • Sensor - 1/3-inch interline CCD
  • Sensor matrix PAL/NTSC - 752 x 582/768 x 494
  • Frame Rates & Resolution(PAL/NTSC) - 4CIF: 25/30 IPS - 704 x 576/704 x 480. 2CIF: 25/30 IPS - 704 x 288/704 x 240. half D1: 25/30 IPS - 352 x 576/352 x 480. CIF: 25/30 IPS - 352 x 288/352 x 240. QCIF: 25/30 IPS - 176 x 144/176 x 120
  • Video out - 1 x
  • Video Signal - Analog composite (NTSC or PAL)
  • Video Connector - 2.5 mm jack socket, 75 ohm
  • Video S/N - 50 dB
  • SenseUp - Off; auto up to 10 x
  • Dynamic Range - 32 x
  • BLC - On/off; area; manual selectable
  • Gain - Fixed; auto with selectable limit (max 28 dB)
  • White balance - Auto (2500 to 10000 K); AWB hold; fixed selectable
  • Auto black - On/off selectable
  • Electronic shutter - Auto; fixed; flickerless; default; 1/60 to 1/150000 s
  • Varifocal - IR-corrected, manual zoom and focus adjustment
  • Iris control - Automatic
  • Viewing angle 3 to 9 mm - Wide 90.3 deg. x 66.4 deg. (H x V) / Tele 31.9 deg. x 23.9 deg. (H x V)
  • Unit configuration - Via web browser or Configuration Manager
  • Flicker control - 50/60 Hz, selectable
  • Sharpness - Horizontal and vertical, symmetrical
  • Firmware - Flash ROM, remote update
  • Protocols - Telnet, RTP, https(S), ARP,TCP, UDP, IP, ICMP, DHCP, IGMPv2/v3, SNMP, 802.1x
  • Ethernet - 10/100 Base-T, auto-sensing, half/full duplex, RJ45
  • Overall unit delay - 120 ms (MPEG-4)
  • PoE - IEEE 802.3af compliant
  • Dimensions (H x W x D) - See drawing
  • Weight (without lens) - Approx. 1.8 kg (3.96 lb)
  • Color - White (RAL 9010), black inner liner
  • Dome Bubble Material - Polycarbonate, clear, UV-blocking, antiscratch coating
  • Trim ring, camera body material - Aluminum
  • Lens mounting - C/CS
  • Adjustment range - 360 deg. pan, 90 deg. tilt,  deg.90 deg. azimuth
  • Operating temperature - -10 C to +40 C (+14 F to +104 F)
  • Storage temperature - -25 C to +70 C (-13 F to +158 F)
  • Humidity - 20% to 80% relative humidity (noncondensing)
  • Water/dust protection - IP 54, NEMA-3R

S7:4 AFH

Specifications

Condition Used
Brand Bosch
Model NWD 495V03 20P
MPN NWD 495V03 20P
Condition Description Please Advised! This unit was inspected and was found to be USED and in good cosmetic condition. The outer casing show mild signs of everyday use, and the protective lens discolored from use. The unit will be packaged in a plain brown box. The unit was removed from a working environment. The unit was tested mechanically and preformed well, unable to preform visional testing.
