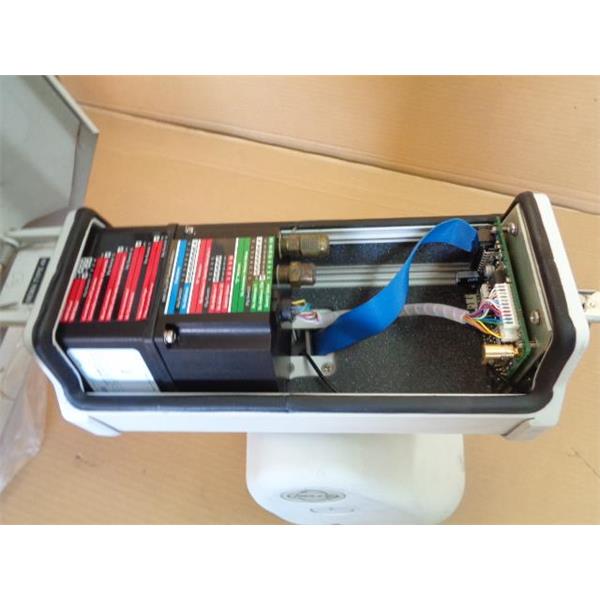

What I can tell you about this item. Used item in good shape with normal user wear showing. A few scratches/scuffs but overall good shape. Everything rotates, spins and moves nicely. Unit opens to view insides all in great clean shape. Padlock lockable with Kevlar housing for security. Please see pictures. Thank you. Receiver / Enclosure
Pressurized Integrated Optics Cartridge
Day/Night Camera (1/4" CCD)
Pressurized Dry Nitrogen to 10 psig
Solid-state Sensors
Heater / Defroster / Sun Shroud
24x Optical and 10x Digital Zoom
Zone Blanking / 64 Preset Positions
Variable Pan/Tilt Speed
On-screen, User-friendly Menus
Signal System NTSC
Image Sensor 1/4" CCD (interlaced scan)
Resolution 520TVL
Number of Pixels 768 x 494
Lens Focal Length: 3.8-91.2mm, F1.2
Zoom: 24x optical, 10x digital
Zoom Speed: 3.9 seconds
Horizontal Angle of View: 50.7° at 3.8mm wide zoom / 2.3° at 91.2mm telephoto zoom
Focus: Automatic with manual override
Iris Operation Electronic (auto/manual)
Minimum Illumination Color: 0.005 lux at 1/2 sec shutter
B/W: 0.015 lux at 1/60 sec shutter
B/W: 0.0005 lux at 1/2 sec shutter
Signal to Noise Ratio >50dB
Controls Day/Night
White Balance (auto/manual override)
Shutter (1/2-1/30,000)
Gain (auto/off)
Audio No
Video Output BNC
Sync System Internal/AC line lock, phase adjustable using remote control, V-Sync
Housing

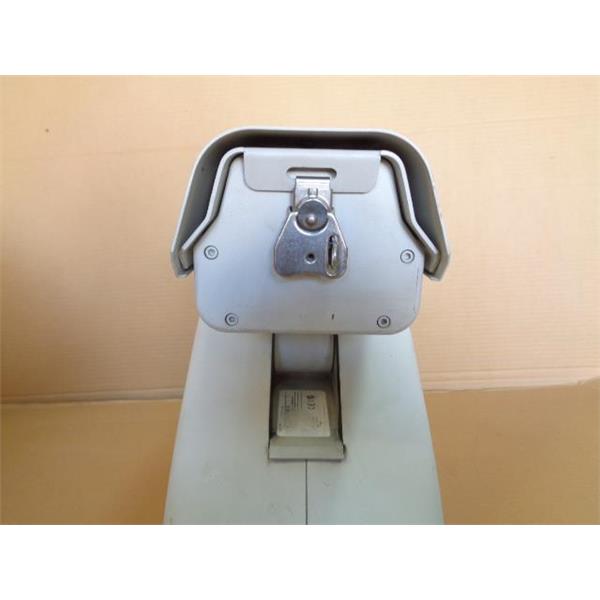

Electrical Input Voltage: 120/230 VAC Input Voltage Range: ±10% Power Consumption: Maximum 70 VA per system Heater and Defroster: Digital temperature control Electrical Connections: 2 power source connections made at mount location with wire splices and 1 ground wire splice; 1 BNC receptacle and 4 wire splices at mount location for RS-422 Pelco D and Pelco P protocols; 2 wire splices for open collector auxiliary output Aux 2: Open collector output with 2-second activation; connected relay must require no more than 32 VDC and 40 mA to energize relay coil; wire length between Esprit and relay must be less than 100' (30 m)Mechanical Pan Movement: 360° Continuous pan rotation Vertical Tilt: Unobstructed +33° to -83° Variable Pan/Tilt Speed: Pan 0.1° to 40° sec variable-speed operation, 100° sec Turbo / Tilt 0.1° to 20° sec variable-speed operation Preset Speeds: Pan 100° sec / Tilt 30° sec Camera Mounting: Replaceable pressurized cartridge Latches: One link-lock, No. 3 stainless-steel latch; can be secured with padlock (not supplied)General Construction: Die-cast, extruded and sheet aluminum; stainless-steel hardware Finish: Gray polyester powder coat Viewing Window: 0.23" (5.84 mm) thick, optically clear impact/scratch-resistant coated Lexan Operating Temperature: -50 to 122°F (-45 to 50°C) for sustained system operation or 140°F (60°C) absolute maximum. Within two hours after power-up, the entire unit can de-ice and be operational from a temperature of -13°F (-25°C). Operating Environment: Will remain operational in 90 mph wind conditions; withstands 130 mph wf D12-2
D12-2
rl fdk 80930208
SG 3-12-2 Renee
Specifications
| Condition | Used |
|---|---|
| Brand | Pelco |
| MPN | PES30PCBW245-5N |
| Type | Cameras |
| Condition Description | Used item in good shape with normal user wear showing. A few scratches/scuffs but overall good shape. Everything rotates, spins and moves nicely. Please see pictures and technical info posted above. Thank you. |
-
