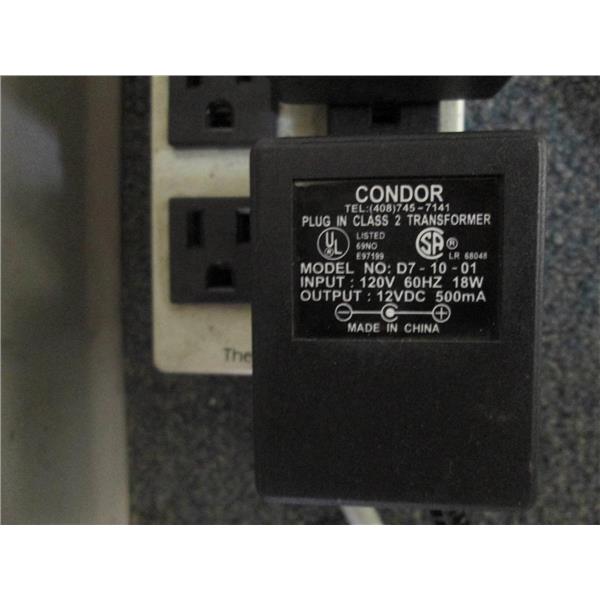

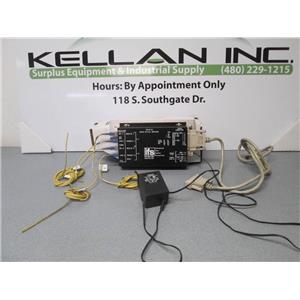

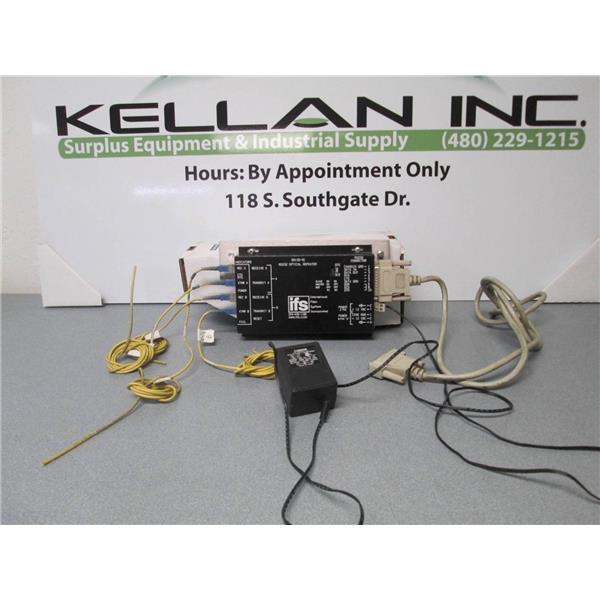

IFS D9130-RS-232 Drop & Repeat Data Optical Repeater w/ Cables.
- Make: [IFS]
- Model / Part #: [D9130-RS-232]
- Description: [Data Optical Repeater]
- Includes all/only items pictured.
Testing:
We don't have the resources necessary to thoroughly test everything. We do test items the best that we can though and try to describe them as honestly and accurately as we can.
Here is what I am able to tell you about this item:

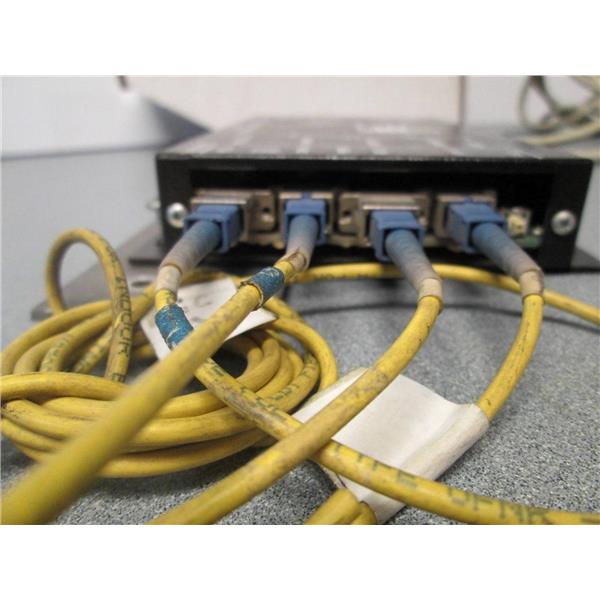

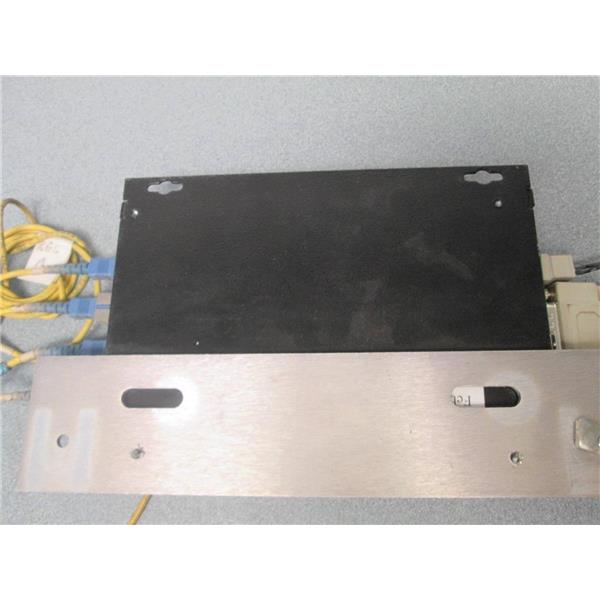

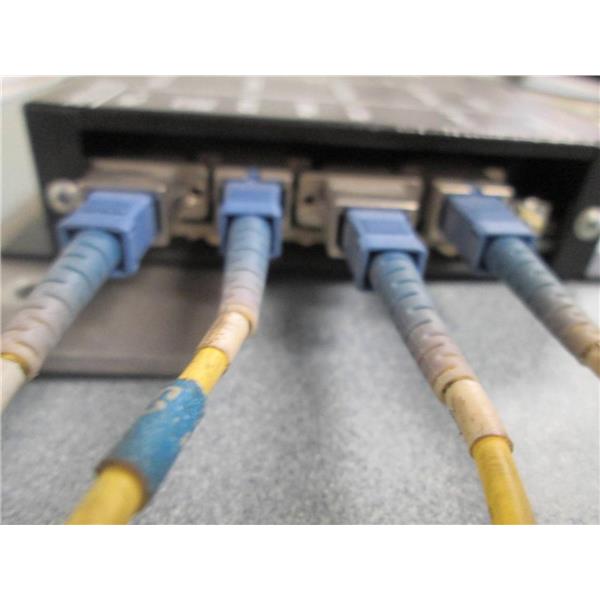

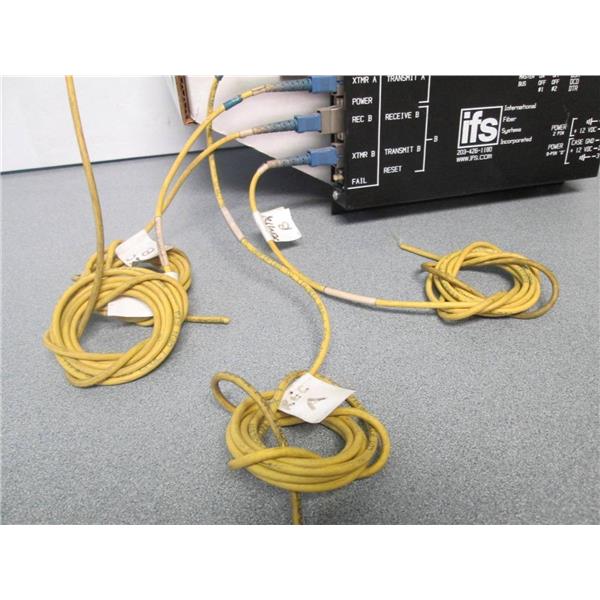

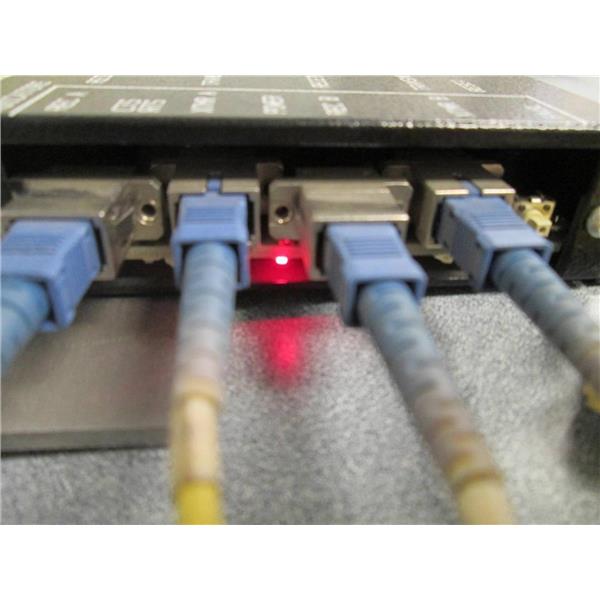

I plugged in the unit and the light comes right on. It has cables connected to it that come with it. It appears to be in working condition and there are no visual issues I can see. Below is more information for the item. Thank you!

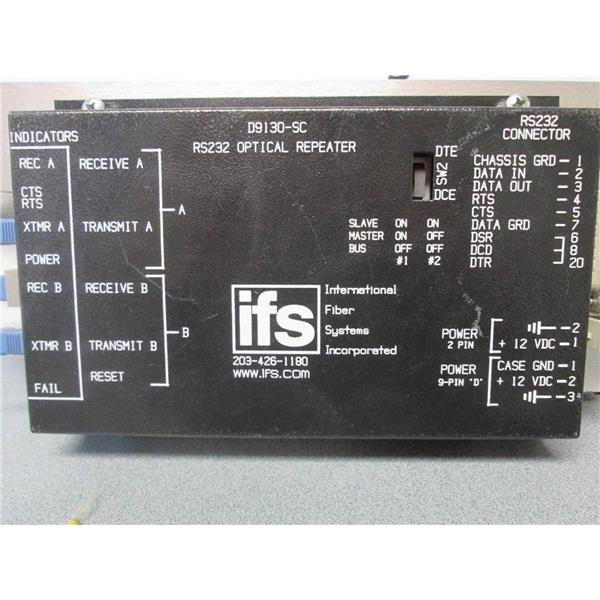

The D9130-SC from GE Security is a RS232 Data Repeater, SM Laser, 2 Fibers, Db25, SC Connector. The IFS series D9100 consists of fully-diital transceiver units designed for implementing simplex or full-duplex RS-232 drop-and-repeat poll-and-respond traffic signalization/communications data networks utilizing two optical fibers. These environmentally-hardened units are ideal for use in unconditioned out-of-plant or roadside installations and the master-configured transceiver unit may be located anywhere within the network, making this equipment ideal for applications involving on-street master controllers with upstream and downstream communications requirements. The D9100-series may be used in a conventional single-master/multiple local network architecture, or in a dual-master/bus multiple local configuration for higher levels of communications reliability. Manually resettable anti-streaming is included for unparalleled network protection. Optional battery back-up capability provides the highest level of network reliability in the event of a loss of local 115 VAC prime operating power, and maintains continuous communications channel operation. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. LED indicators are provided for rapidly ascertaining equipment operating status, and these units are available in either stand-alone or rack-mount configurations.
Features
- Meets EIA RS-232C/D Specifications (Simplex or Duplex)
- Robust Design Assures Extremely High Reliability In Unconditioned Roadside
- Environments

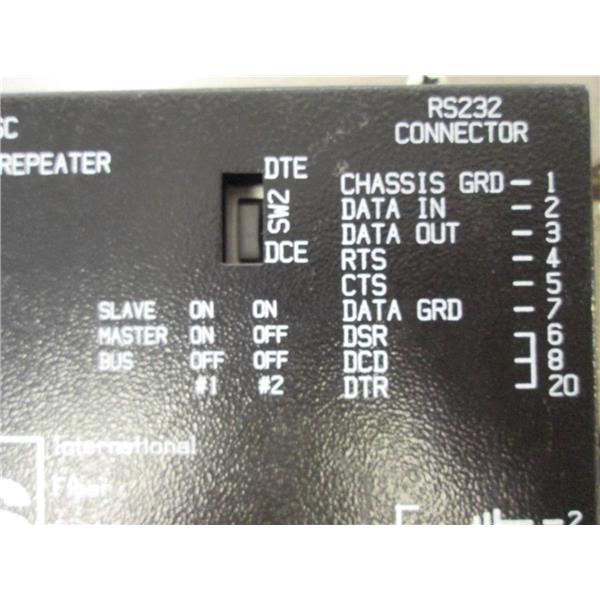

- User-Selectable Local, Master or Bus operation and DTE or
- DCE Interface Ensured Ease of Installation and Maximum, Versatility
- Supports Request to Send (RTS) and Clear to Send (CTS) Signals

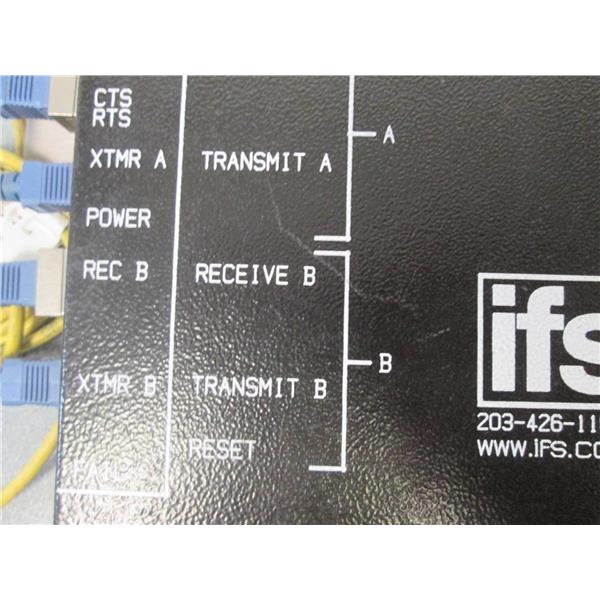

- LED Indicators Provide Rapid Indication of Critical Operating Parameters
- Solid-State Current Limiters on all Power Lines Provide Equipment Protection
- Supports Single and Dual-Master/ Bus Traffic Signal Controller Communication System
- Wide Optical Dynamic Range, Optical Attenuators are Never Required
Specs - Manufacturer Utc Fire & Security
- Condition New
- Model D9130-SC
- Data Interface RS-232 C/D, RS-422
- Data Rate DC - 100 Kbps
- Operating Mode Asynchronous Simplex or Full-Duplex
- Anti-Streaming Time-out 4, 8, 16, 32, 64 seconds, or infinity (disabled)
- Wavelength 850 or 1310 nm, Multimode, 1310 nm, Single Mode
- Number Of Fibers 2 In/2 Out
- Power Connectors Terminal Block with Screw Clamps

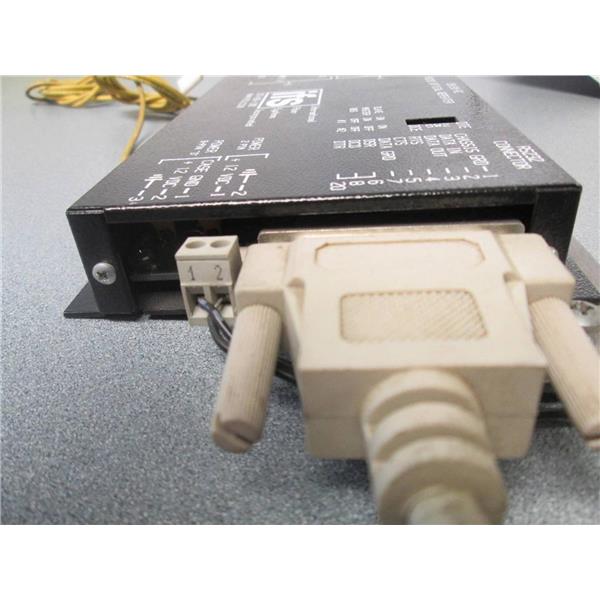

- Data Connectors Type DB-25S
- Number of Rack Slots 1 (2 slots required for units with -B Battery back-up option)
- Current Protection Automatic Resettable Solid-State Current Limiters
- Circuit Board Meets IPC Standard
- Surface Mount 7.0 x 4.9 x 1.0 in., 17.8 x 12.5 x 2.5 cm
- Rack Mount 7.0 x 5.0 x 1.0 in., 17.8 x 12.7 x 2.5 cm
- Operating Temp -40° C to +74° C
- Storage Temp -40° C to +85° C
- Relative Humidity 0% to 95% (non-condensing)
Cosmetic Condition: Used / Good
S487-2 RW
rlfdk80303228
Specifications
| Condition | Used |
|---|---|
| Brand | IFS |
| MPN | D9130-RS-232 |
| Analyzer Type | Network Analyzers |
| Condition Description | Good shape no visible issues cables attached....No manufacturers Packaging. |
-
