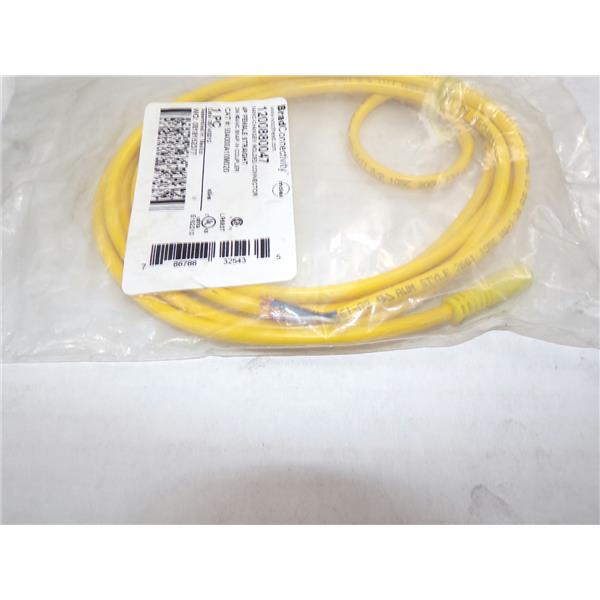

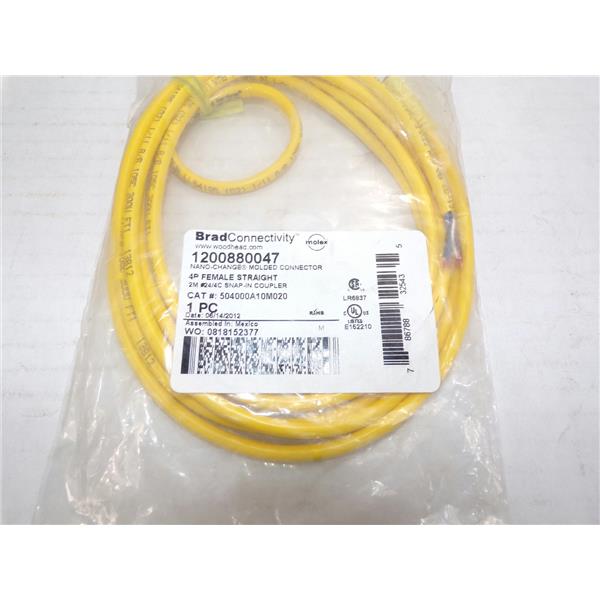

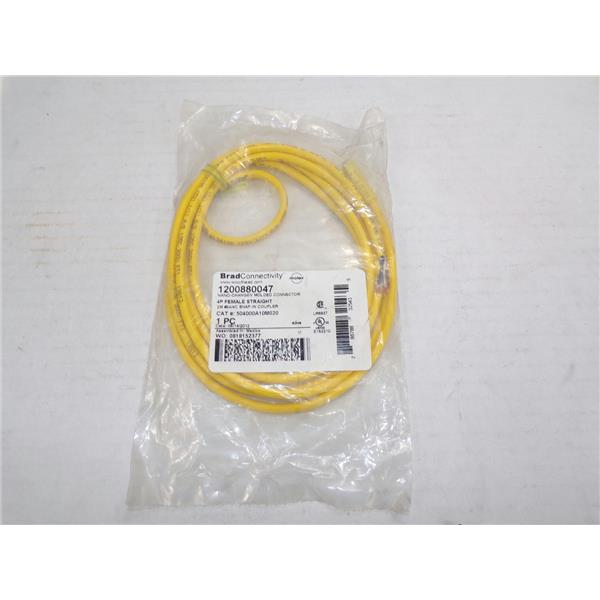

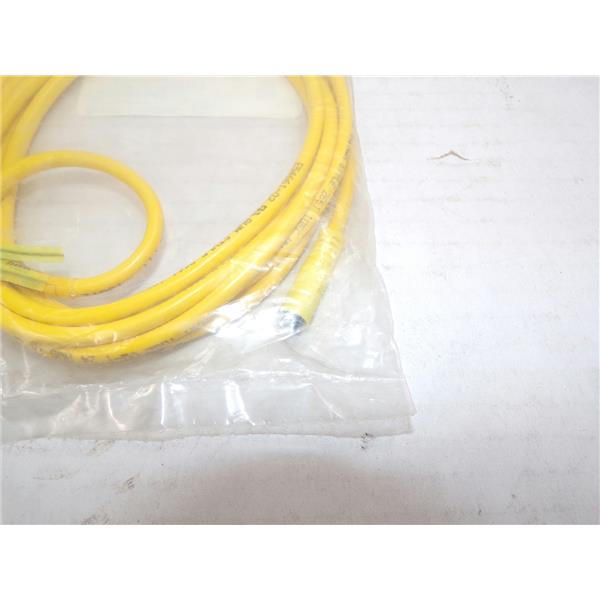

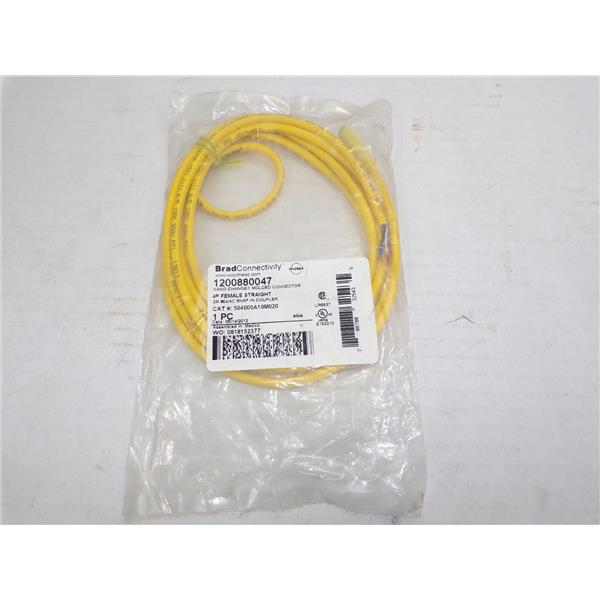

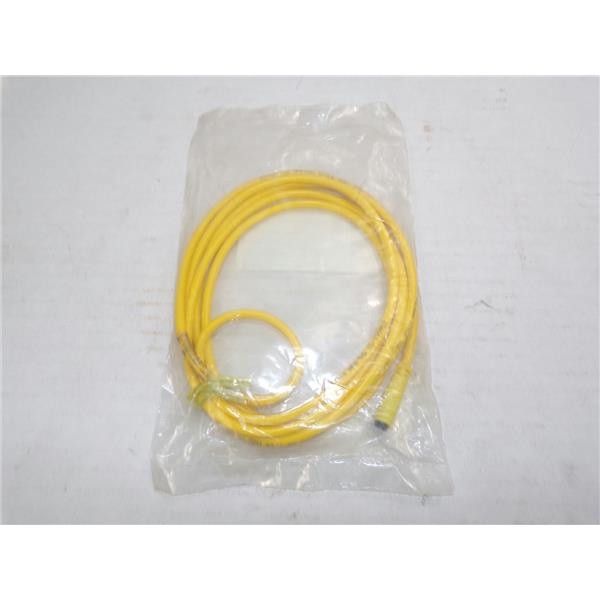

Brad / Molex 1200880047 4 Pole Female Snap Coupling to Pigtail 50400A10M020

$14.25

Availability: In stock

Estimate Shipping Cost

Enter your destination to get a shipping estimate

Details

Brad / Molex 1200880047 4 Pole Female Snap Coupling to Pigtail 50400A10M020

Category Industrial Cordsets

Series 120088

Connector End A Nano-Change (M8)

Connector End B Pigtail

IP Rating IP67

Overview Brad Nano-Change (M8) Products

Product Name Nano-Change (M8)

Protocol N/A

Region America

Type Single Ended

UPC 78678832543



Physical

Cable Diameter 4.32mm (.170")

Cable Length 2.0m (6.56')

Color - Cable Jacket Yellow

Coupling Style Snap

Gender Female-Pigtail

Keyway None

LED Indicator No

Material - Cable Jacket PVC

Material - Connector Body TPE

Material - Contact Copper Alloy

Material - Coupling Nut N/A

Material - Plating Mating Gold over Nickel

Orientation Straight

Poles 4

Temperature Range - Operating -20°C to +105°C

Wire Size AWG 24

Wire/Cable Type E152210



Electrical

Current - Maximum per Contact 3.0A

Voltage - Maximum 60V AC / 75V DC



Agency Certification

CSA LR6837

UL E152210

S49 #43 AFH 61222166

Specifications

Condition New
Brand Brad / Molex
MPN 120088-0047
